R/C-Controlled LED Projects
Add some navigation lights to your R/C project..., fully controllable from your R/C Transmitter too!

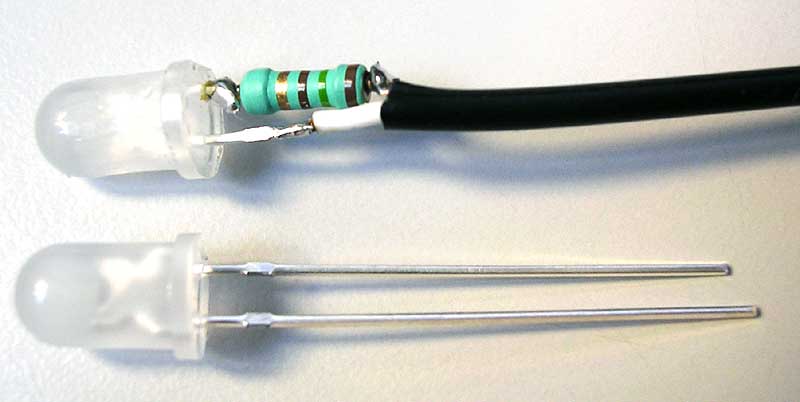

What are LEDs and how do you assemble & install them? (CLICK HERE)
Need to calculate the proper value resistor for efficiently driving your LEDs ?   (CLICK HERE)


    R/C-controlled PC-Programmable LED Sequencer Flasher
"MINI-FLASH"

- Supports 4 channels (multiple LEDs/channel)
- Maximum of 50 events per sequence

- Programmable Pattern/Rate using PC Program!
- Programmable Servo control "zones" for channels

- 800ma per channel ! (i.e. transistor outputs)

Parts

Building

Testing & Operation

Notes

Completed!

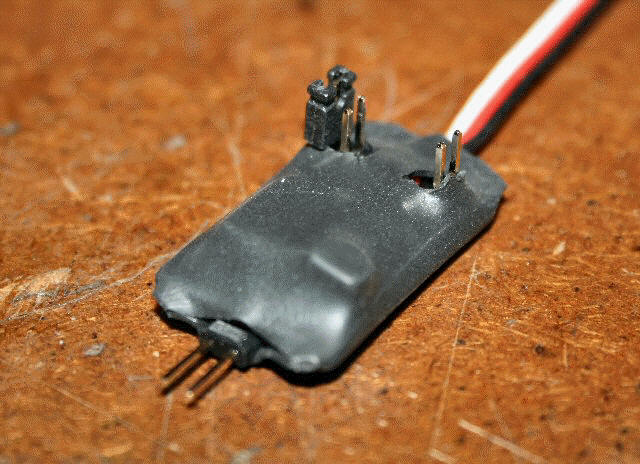

    R/C-controlled Rotating Beacon Simulator/LED Driver
"MINI-BEACON"

- One Output channel (600mA max)
- Simulates visual effect of beacon

- Light ramps up, flashes, then ramps down
- Use your R/C gear (turn on/off) or set for free-running mode

- 12 different beacon patterns to choose from (using simple jumper)

Parts

Building

Testing & Operation

Notes

Completed!



    R/C LED Flasher and LiPo Voltage Monitor
"MINI-VOLT"

- Supports 3 channels (multiple LEDs/channel)
- Maximum of 50 events per sequence

- Programmable Pattern/Rate using PC Program!
- Programmable Servo control "zones" for channels

- 800ma per channel ! (i.e. transistor outputs)
- Programmable LiPo Cutoff/Warning Voltage (3s-5s)

- Flashes All LEDs fast as a visual warning

Parts

Building

Testing & Operation

Notes

PENDING

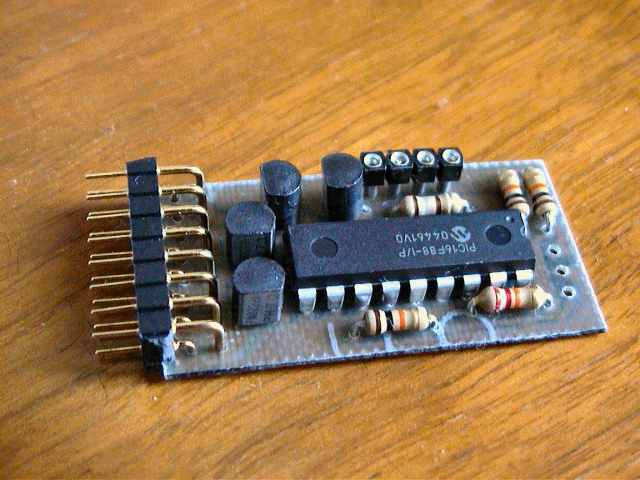

    R/C Programmable LED Sequence/Flasher System
"PRO-FLASH"

- Supports 8 channels (multiple LEDs/channel)
- Maximum of 100 events per sequence

- Programmable Pattern/Rate using PC Program!
- Programmable Servo control "zones" for channels

- 800ma per channel ! (i.e. transistor outputs)

Parts

Building

Testing & Operation

Notes

Sorry...

Discontinued



    R/C-controlled PC-Programmable High-Current LED Sequencer Flasher
"MAXI-FLASH"

- Supports 4 channels (multiple LEDs/channel)
- Maximum of 50 events per sequence

- Programmable Pattern/Rate using PC Program!
- Programmable Servo control "zones" for channels

- 20A+ per channel ! (MOSFET outputs)

Parts

Building

Testing & Operation

Notes

PENDING!


GOT ANY MORE IDEAS???

EMAIL ME!
